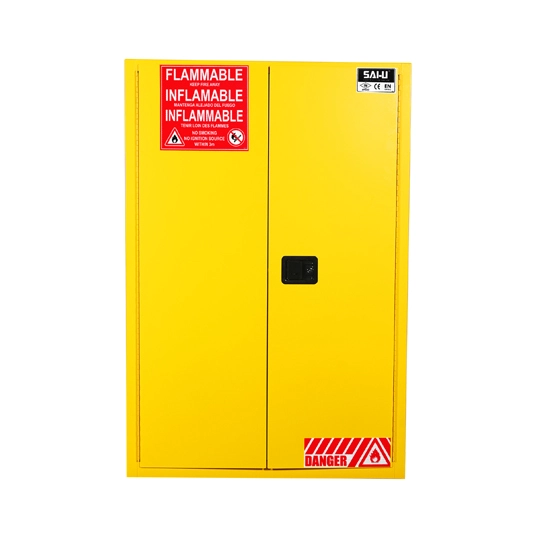

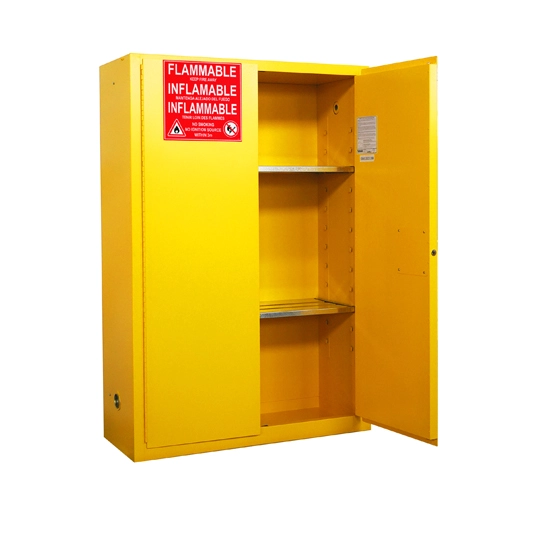

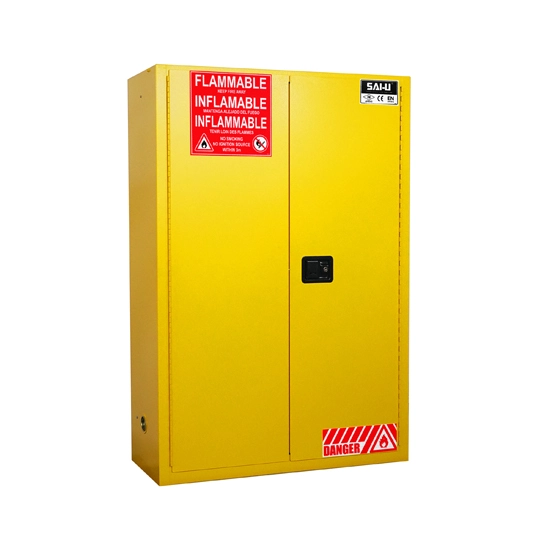

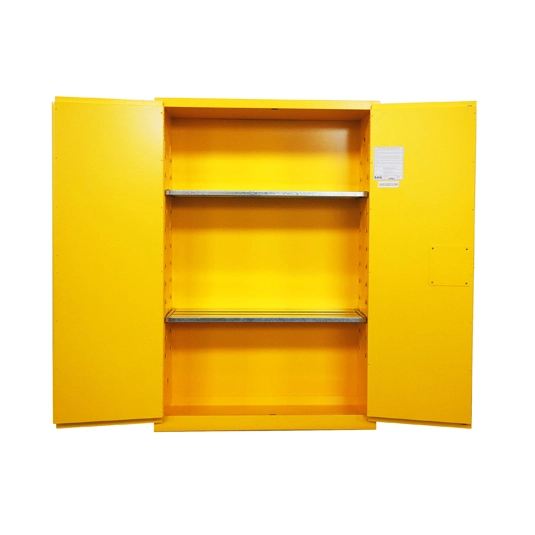

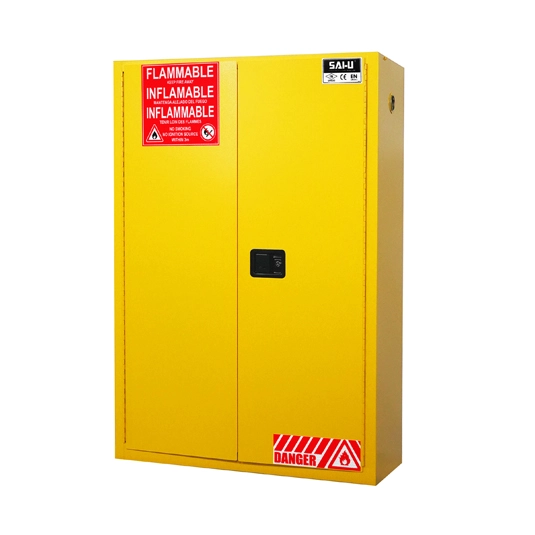

SC0045Y safety cabinet is made of all steel fire and corrosion resistant hinges, and the cabinet door can be freely opened 180 degrees.
Designed for storing flammable materials substances.
Storage capacity of 45 gal (170 L)of flammable liquids.
The product dimensions is 1650 * 1092 * 457mm.
Complies with OSHA, NFPA 30, NFPA1.
Passed fire explosion testing and obtained FM approval and CE certification.
| Model | SC0045Y |
| Capacity (Gal/L) | 45/170 |
| Approval | FM, CE |
| Internal Dimension(H*W*D/mm) | 1550*1006*377 |
| External Dimension(H*W*D/mm) | 1650*1092*457 |
| Packing Dimension(H*W*D/mm) | 1775*1150*520 |
| Adjustable shelves (pcs) | 2 |
| Shelf Loading Weight(kgs) | 100 |
| N.W. (kgs) | 128 |
| G.W. (kgs) | 153 |
| Door Type | Double Door, Manual |

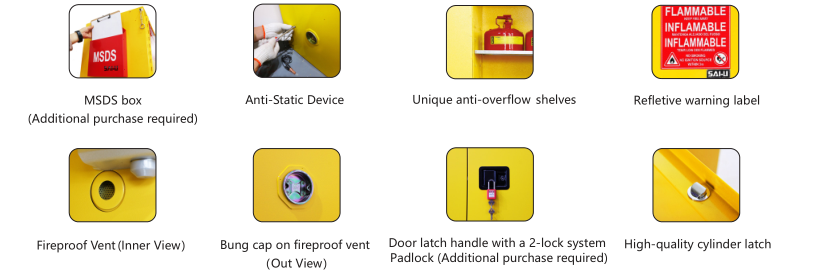

● 1.2mm high-quality galvanized steel.
● Environment-friendly electrostatic powder coating, resistant to corrosion.
● Double-layer steel sheet welded structure,with a 38mm insulation in the middle.
● Stainless steel anti-corrosion hinges, the door can be opened to a maximum of 180 degrees.
● Shelf support-hook with a 6.5cm interval, Shelves arbitrary adjustable, firm and practical.
● Unique anti-overflw shelves, prevent accidental leaked chemicals spilling.
● 5.1cm deep leakage slot, prevent liquid spillage.
● Three-point door latch, makes the door open and close more flexible and stable.
● Fireproof vent, efectively dilute the concentration of volatile substances inside the cabinets to prevent fire hazards.
● 3M Engineering Grade Reflective warning labels, reflect light when illuminated by a flashlight, and has high visibility even in the case of fire or blackout.
● MSDS box, facilitates the storage and use of various manuals and documents (Additional purchase required)
