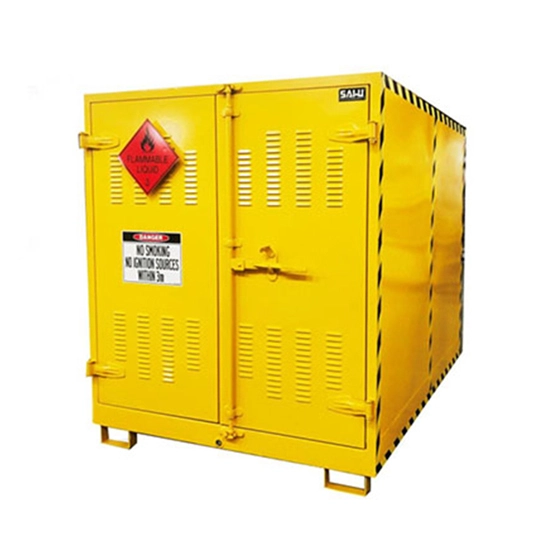

SAI-U® Outdoor Oil Drum Storage Cabinet DC006Y

SAI-U DC006Y oil drum cabinet is designed specifically for outdoor use, capable of withstanding harsh weather conditions and protecting the oil drum from environmental factors. This oil drum cabinet uses eye-catching colors such as yellow or red to enhance warning effectiveness.

Products

Specification of Outdoor Oil Drum Cabinet DC0006Y

ModelDC006Y
External Dimension (H*W*D/mm)1750*1500*2160
Internal Dimension (H*W*D/mm)1460*1420*2080
Packing Dimension (H*W*D/mm)1750*1500*2160
Door TypeSided/Double door,Manual

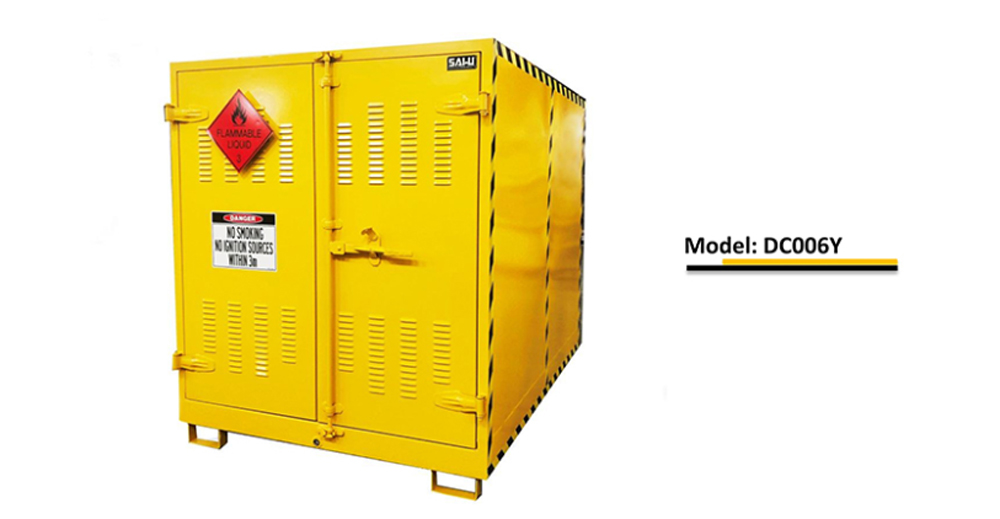

Details of SAI-U Oil Drum Cabinet DC0006Y

Details of Outdoor Oil Drum Cabinet DC0006Y

In the world of today, an increasing number of flammables, exist in the industrial field, and its safety treatment and storage are urgent problems that need to be solved. The new series of SAI-U outdoor oil drum storage cabinets are completely designed and manufactured in accordance with OSHA 29 CFR 1910.106US. This oil drum cabinet is conducive to the organized storage of dangerous goods, safety management, protects the safety of people, property and the environment, and provides better security protection for personnel and the environment.

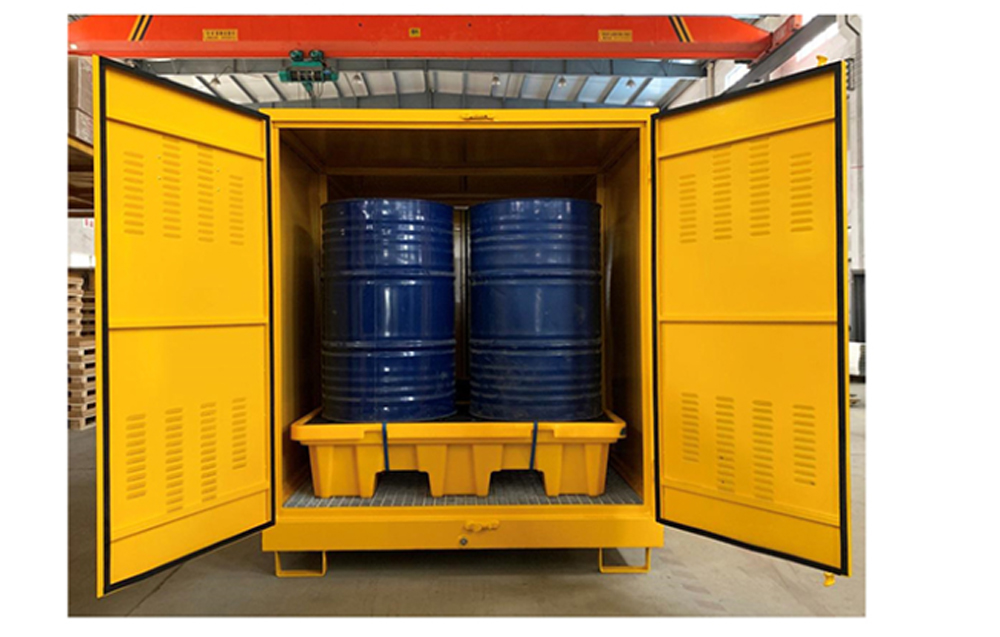

SAI-U oil drum storage cabinet is made of high-quality cold-rolled steel plate, which is a single-layer frame structure. Lead free epoxy resin electrostatic spraying is used inside and outside of cabinet to make the cabinet have certain corrosion resistance. A high-quality glass fiber reinforced plastic grille is placed in the oil drum cabinet at the bottom; a leakage tank at the bottom can store leaking spilled liquid. The bottom of the oil drum cabinet has a drainage hole design, which can easily clean up the liquid leaking from the tank. Oil tank cabinet door shutter ventilation design can effectively adjust the temperature inside the cabinet, the ventilation effect is good, the leakage gas concentration can be reduced, and the explosion is prevented.

Details of Outdoor Oil Drum Cabinet DC0006Y

SAI-U® outdoor drum storage cabinets offer specialized solutions for the secure storage of hazardous and flammable liquids. Besides DC006Y, our SC0055Y flammable drum storage cabinet is designed for hazardous liquids, featuring FM and CE certifications, an adjustable layer plate, and a roller. The SC0110Y outdoor flammable cabinet, made from 1.2mm galvanized steel and coated with epoxy polyester powder, ensures a robust and corrosion-resistant structure. The SC0115Y is suitable for flammable liquids like drums, paint, solvents, and alcohol, with two adjustable layers on the left and one on the right. The SC0120Y, available in 1.0mm or 1.2mm galvanized steel, also features an epoxy polyester coating for enhanced durability and corrosion resistance.
