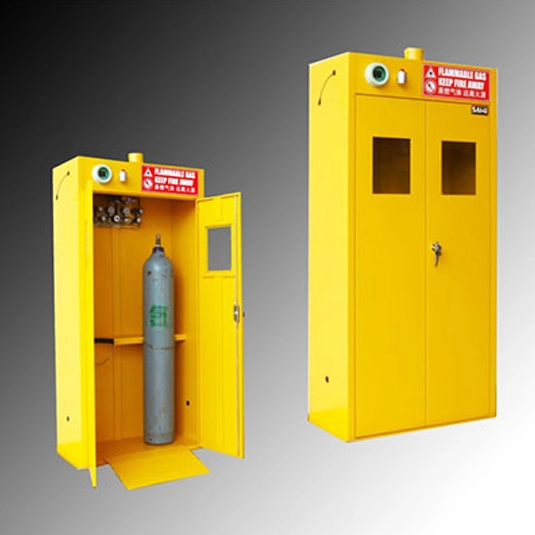

GC002Y is equipped with a professional adjustable gas detection and control system, and users can adjust the threshold of gas concentration alarm according to their needs.
| Yellow Model | GC0002Y | GC0003Y |
| Number of cylinders placed | 2 | 3 |
| Internal dimensions (H*W*D/mm) | 1700*898*425 | 1700*1198*425 |
| External dimensions (H*W*D/mm) | 1900*900*450 | 1900*1200*450 |
Package size (H*W*D/mm) | 2150*1000*560 | 2150*1300*560 |
| Top vent height (mm) | 100 | 100 |
| Gas Detection Concentration | Adjustable | Adjustable |
| Type of alarm device | Sound and light in one package | Sound and light in one package |
| Door type | Double doors, manually closed | Double doors, manually closed |
When installing the SAI-URall-steel alarm gas cylinder cabinet, firstly choose to stay away from the fire source, install in a well ventilated place, and place the cabinet on the level ground;
Installation method of gas cylinder: use the gas cylinder cart to move the gas cylinder to the gas cylinder cabinet, and put the gas cylinder into the fixed bracket. After the inspection is correct, the fixing belt should be locked until the gas cylinder is not shaken;
Use the power adapter to connect the excuses on the left side of the cylinder cabinet to the 220vpower supply, and wait until the display is responsive and the digital display is stable (the alarm system is ready for normal operation);
For detailed instructions on the use of gas detection instruments, please refer to the attached
instruction manual of the relevant test instrument.
After using the gas cylinder cabinet, please first close the pedal and then close the cabinet door;
Be sure to secure the cylinder with a chain and carefully confirm that it is stable;
Select the appropriate access power supply to ensure the normal use of the detection
instrument;
After the alarm cabinet issues a dangerous alarm, the gas leakage problem should be dealt with immediately. Do not cut off the power first;
Be sure to keep the contents of the gas cylinder alarm cabinet free of debris.
